How To Make The Right Choice About Types Of Software Architecture?

Home >> Blogs >> How To Make The Right Choice About Types Of Software Architecture?
Types Of Software Architecture

An architectural pattern is a general, reusable approach to a particular problem in software architecture. The architectural trends cover a range of software engineering challenges, including computer hardware performance constraints, high availability, and business risk mitigation. In this article, the five types of software architecture have been filtered into a quick reference to strengths. We should use several patterns for maximizing each code segment with the right architecture patterns in a single framework.

Types of Software Architecture

Here are top five types of Software Architecture:

1. Layered (n-tier) Architecture

Possibly the most prevalent solution since it is typically designed around the database, and many business applications naturally store information in tables. It’s a prophecy that meets itself. Many of the biggest and strongest tech frameworks – like Java EE, Drupal, and Express – have been designed in the light of this structure, with a layering architecture that inevitably involves many applications built with them. The coding is structured such that the data reaches the top layer and operates down to the ground on each layer, typically a database. Each layer has a special role along the way, such as consistency testing or reshaping the values.

It is normal to operate independently on various layers with different programmers. Common programming architecture provided by many popular web frameworks, the Model-View-Controller (MVC) layout is simply a layered architecture. The model layer just above the database also includes business logic and the data types in the database. The top is the display sheet, often with complex embedded JavaScript, CSS, JavaScript, and HTML. In the center, the controller has different rules and methods to convert the data from the vision to the model.

The value of a layered architecture is that each layer is isolated to concentrate only on its task. It makes it:

  1. Maintainable
  2. Testable
  3. Easy to assign separate “roles.”
  4. Easy to update and enhance layers separately

Properly layered structures have separate layers and are not influenced by the alterations on other layers, making refactoring simpler. This architecture can also provide additional open tiers, such as a service layer, which can only be reached in a company layer but can also be circumvented for speed.

2. Event-Driven Architecture

Much of the services wait for anything to happen. It refers to machines that interact directly with individuals but are popular in fields such as networks. Often data is required, and sometimes there isn’t. Data requires processing. This architecture, guided by events, helps build a central unit that accepts and delegates all data to the individual modules dealing with the specific sort. This command is meant to produce a “case” and is passed to the code of the form assigned. To program a JavaScript web page, we have to write small modules that respond to events such as mouse clicks or keystrokes. The browser organizes the input itself, and only the correct code sees the right circumstances. Many different types of events are common in the browser, but the modules only interact with their events.

3. Microkernel Architecture

Many systems have a central collection of operations, which are used frequently in multiple models based on the data and tasks involved. E.g., the popular Eclipse creation tool can open, annotate files, edit and start background processors. The device is famous for using Java programming architecture to do all these jobs and then compile and run a code when we hit the button.

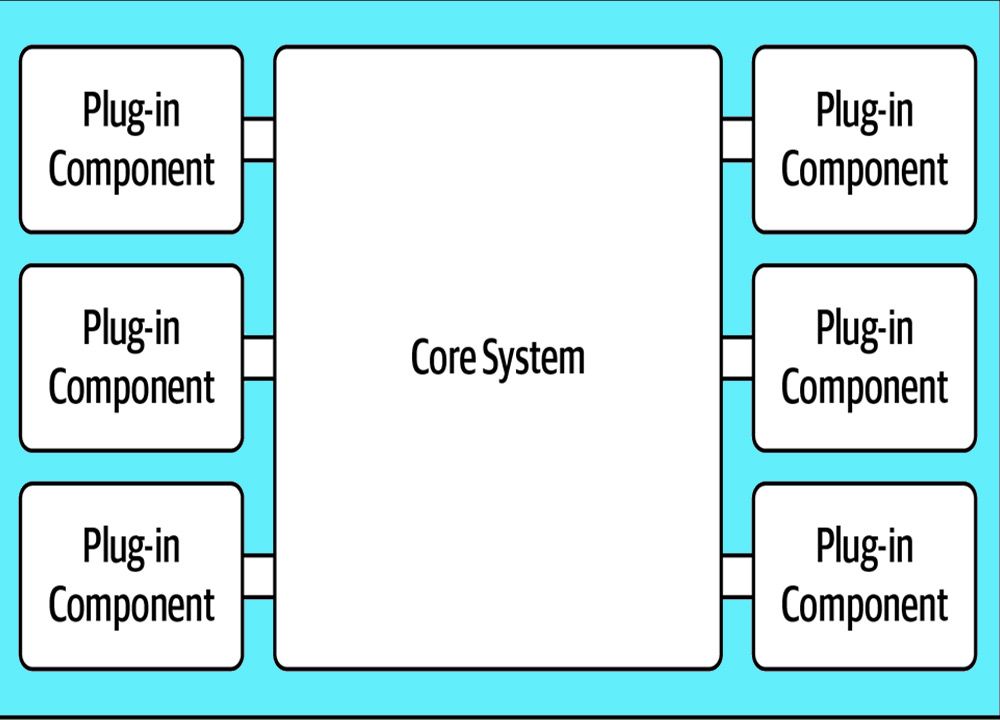

Microkernel architecture
Microkernel architecture

In this case, a microkernel is part of the fundamental routines for viewing and editing a file. The Java compiler is only one additional piece that supports the essential characteristics of the microkernel. Different programmers expanded Eclipse to create other compiler language code. Some people don’t even use a Java compiler, but they all use the same simple file editing routines. The external features on the top are usually considered plug-ins. Many plug-in Software architecture types call this an extensible approach. The alternative is to transfer such simple activities into the microkernel, demanding a name or confirming payment. The various business units will then write plug-ins for the various argument forms by knitting the rules and calls to the basic kernel functionality.

4. Architecture of Microservices

Software architecture types could be like a baby elephant: when it’s tiny, it’s cute and fun; but when it’s large, it isn’t easy to steer. The microservices’ software architecture pattern is designed to help developers render their children unmanageable, monolithic, and inflexible. Instead of designing a huge program, the aim is to develop various small programs and then create a new small plan any time a new function is introduced.

This method is analogous to approaches guided by events and the microkernel but primarily used where the multiple activities are readily isolated. Different tasks can, in many cases, require further processing speeds and vary in use. The servers that provide Netflix content would be much harder to ramp up on Friday and Saturday nights. On the other hand, servers monitoring the DVD return do most of their job throughout the week only after the day’s mail from the post office. The Netflix cloud will scale them up and down individually as demand increases by using different resources.

5. Space-Based Architecture

Many websites are designed around a database and run as long as the database can maintain the load. Nevertheless, the entire webpage struggles if consumption peaks and the database does not fulfill the relentless challenge of logging the transactions. The space-based types of software architecture are designed to ensure a high load functional collapse by dividing processing and storage between servers. The data is scattered across the nodes, much as the service calls responsibility. The word “spatial” refers to the “flexible space,” which is cut off to separate the nodes’ work. Other developers use the amorphous term “cloud software architecture pattern.”

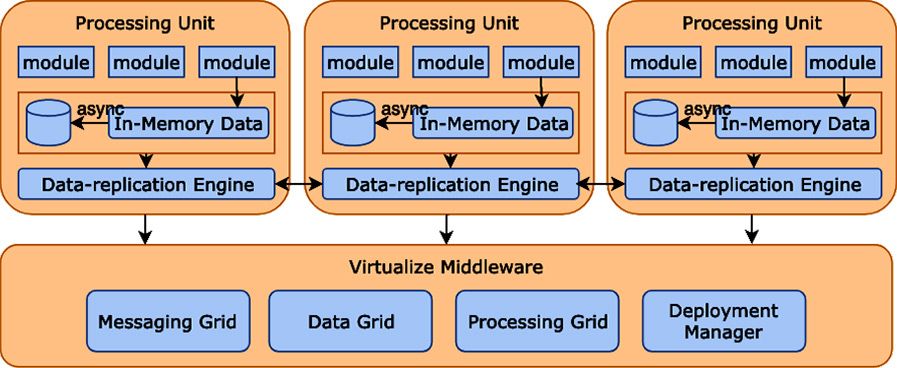

Space-Based Architecture
Space-Based Architecture

Save the details in RAM renders many jobs much quicker, and the retrieval of the storage can simplify many fundamental tasks. However, some analyses are more complicated in terms of distributed architecture patterns. Computers distributed over the whole data collection – such as the finding of an average or the performance of a mathematical study – can be separated into sub-jobs, spread across all nodes, and aggregated afterwards.

Also Read: Software Architecture: N Tier, 3 Tier, 1 Tier, 2 Tier
